铝双头切割锯零件出现误差的影响

2018-03-19 点击数:1579
断桥铝设备双头切割锯行为误差对机械产品的工作精度、链接强度、运动平稳性、密封性、耐磨性、配合性质以及可装配性都会产生影响,引起噪声,缩短双头切割锯的使用寿命,一般来说,可归纳为以下三个方面:
The aluminum double head cutting saw device behavior error on the mechanical product working accuracy, link strength, smooth movement, sealing and wear resistance, with nature as well as the assembly will have an impact, caused by noise, shorten the service life of the double head cutting saw, in general, can be divided into the following three aspects:
1.影响断桥铝双头切割锯零件的功能要求,例如双头锯导轨表面的直线度、平面度不好,将影响双头锯切割锯片的运动精度,齿轮箱上个轴承孔的位置误差,将影响齿轮传动的齿面接触精度和齿侧间隙,钻膜、冲模、锻模等工作表面,其性质误差则会直接影响其工作精度或被切割型材的几何精度。
1. the effect of double bridge aluminum cutting saw parts of the functional requirements, such as double saw rail surface flatness is not good, will affect the motion accuracy of double head saw cutting blade, the position error of bearing hole on the gear box, the influence of tooth contact accuracy and backlash of the gear drive drill film, die die, work surface, the nature of the error will directly affect the precision or geometric accuracy of cut profiles.

2.影响断桥铝双头切割锯零件的配合性质,形状误差会影响零件表面间的配合性质,造成间隙或郭颖不一致。对于间隙配合,局部磨损加快,降低零件的运动精度,缩短零件的工作寿命。对于郭颖配合,影响连接强度。

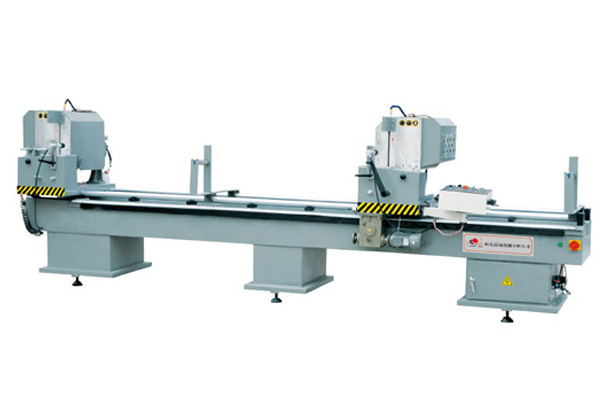

铝切割设备

2. influence the matching property of the double head cutting saw parts of the broken bridge. The shape error will affect the matching property between the parts' surface, and cause the gap or the Guo Ying disagreement. For the gap coordination, the local wear is accelerated, the motion precision of the parts is reduced and the working life of the parts is shortened. For Guo Ying coordination, it affects the strength of the connection.
3.影响零件的自由装配性。位置误差不仅会影响双头切割锯零件表面的配合性质,还会直接影响零、部件的可装配行。例如,若法兰端面上空的位置有误差,就会影响零件的自由装配性,电子产品中,电路板、芯片的插角位置误差会影响这些器件在整机上的正确安装。
3. influence the free assembly of the parts. The position error will not only affect the matching properties of the surface of the double head cutting saw, but also directly affect the assembly line of the parts. For example, if the position above the flange face has errors, it will affect the free assembly of parts. In electronic products, the location error of PCB and chip will affect the correct installation of these devices on the whole machine.
