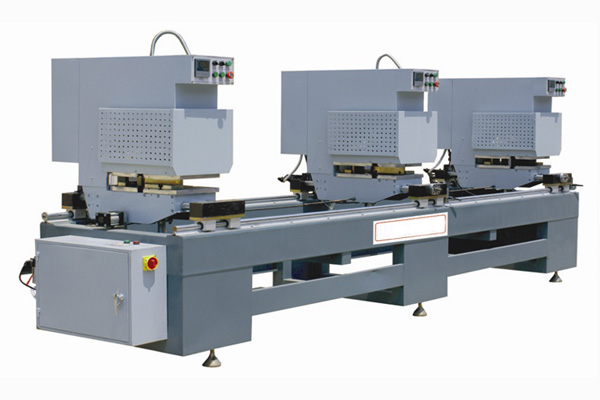

铝木门窗组框机结构及装置

适用于铝门窗及幕墙型材的切割,进给系统采用进口直线导轨运动副,精度高,稳定性好。右机头进给导轨滚珠丝供运动形式,船东精度高,定位准确,工作平稳。该机采用数控技术,可完成型材不同规格尺寸的自动下料。
It is suitable for cutting aluminum doors and windows and curtain wall sections. The feed system adopts imported linear guide motion pair, which has high precision and good stability. The right head feed guide rolling ball wire for movement form, the ship owner has high precision, accurate positioning and smooth work. The machine uses numerical control technology to complete the automatic blanking of different specifications and sizes of the profiles.
两锯头可自动转换角度,实现任意角度切割。原装进口硬质合金锯片,加工精度高,耐用度高。进口直线轴承运动副,使工作精度稳定。高精度主轴使锯片转动稳定。气液阻尼缸实现进给调速均匀,运动平稳。
The two sawing head can automatically transform the angle to realize the arbitrary angle cutting. The original imported carbide saw blade has high processing precision and high durability. The moving pair of linear bearings is imported to make the work precision stable. High precision spindle makes the saw blade steady. The air - liquid damping cylinder realizes the uniform speed control and smooth movement.
主要技术参数：
Main technical parameters:
工作气压 0.4-0.6 MpaWorking pressure 0.4-0.6 Mpa

输入电源 380V 50HZ
Input power 380V 50HZ
耗气量 200 L/min
Gas consumption 200 L/min
输入功率 5.9KW
Input power 5.9KW
锯片规格 Φ500×Φ30×4.5
Saw blade specification of 500 x 30 x 4.5
锯片转速 3100 r/min
The speed of the saw blade is 3100 r/min
切削宽度 135 mm
Cutting width is 135 mm
切削高度 200 mm
Cutting height 200 mm
双切长度 400-4200 mm
Double tangent length 400-4200 mm
外形尺寸 5500×1700×1800 mm

Shape size 5500 x 1700 x 1800 mm
重量 2100 kg
Weight 2100 kg
